The digital die cutting machine has experienced three kinds of die cutting technologies traditional die cutting, digital die cutting and laser die cutting Traditional die cutting technology is mature, fast and widely used.
.png)
The shortage of traditional die cutting machine needs knife template, which is difficult to adapt to today's rapidly changing social development. With the innovation and application of technology and the continuous improvement of people's living standards, people's quality of life requirements, personalized customization is increasing. In this demand, we have developed a unique flatbed multi-blade digital die cutting machine after many efforts in many years, whose technology was combined with the characteristics of other industries.
Digital die cutting machine system collected laminating, die cutting, slitting and rewinding in one. It is the best solution for label finishing system.

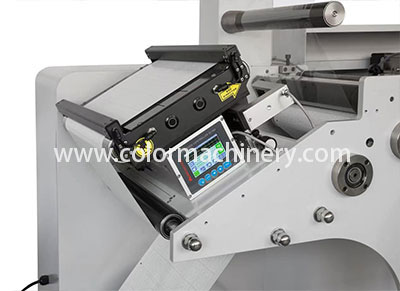

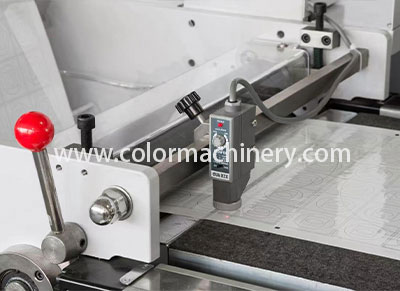

Web guide:
Platform correction tracking sensors system,guarantee media feeding in regulady.
You can choose edge control.
Web guide with ultrasonic sensor, can be for adhesive label and transparent label

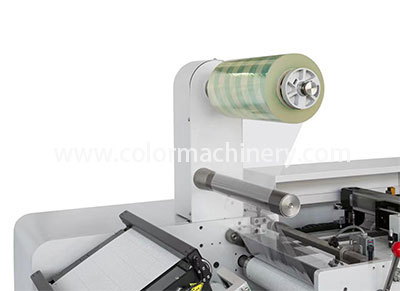

Cold Laminating:
It has cold laminating function.your label will be bright and perfect.

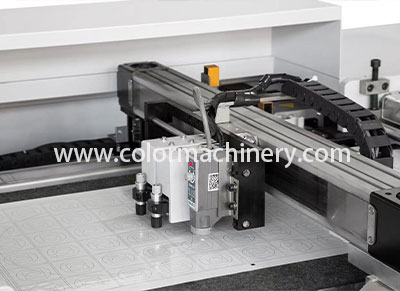

Die Cutting system:
Label die-cutter utilize Servo motor driving. use tungsten steel blade, speed can reach 2m/min. Design many cutting heads, the cutting thickness get to 1mm, more fast, more reliable and more efficiency

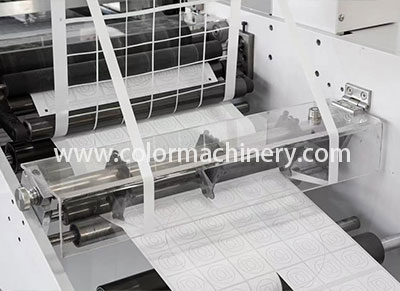

Slitting System:
Adopts rotary siting mode, can install max. 15 blades, high speed with 60m per minute, instead of traditional slitting equipment completely.

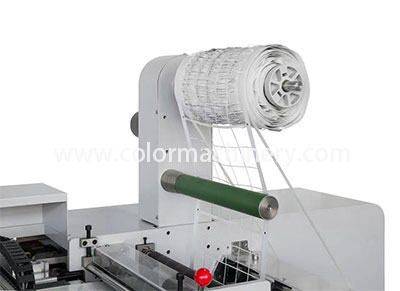

Waste Removing system:
The precision machinery design can control the waste roller rewinding uniformly, avoid removing waste discontinuously due to unstable pressure, keep finishing labels clean.
Use digital die cutting machine you don't need to make cutter mold.do not delay the production due to mold preparation and shipment To be important, not only reduces the cost and time. but also raise your work efficiency
Unique servo digital cutting technology can use 4 blades in the same time for die-cutting labels compare with other single blade equipment, it reduce production ime and cost.
|
Max.Unwinding dia. |
O.D diam 500mm |
Slitting speed |
Max 100m per min |
|
Max.Roller width: |
40-350mm |
Siting width |
10-330mm |
|
Max.label width: |
350mm |
Sing precision |
0.1mm |
|
Min label length |
10mm |
Machine size |
2.4*1.8*1.6m |
|
Max label length |
400mm |
Machine weight: |
About 800Kg |
|
Cutting speed |
6m/min (depend on label shape and size) |
power: |
110-127VAC 50-60HZ, 1000WATTS 220-240VAC 50-60HZ, 1000WATTS |
|
Cutting blades |
2pcs (standard) max. 4 pcs (optional) |
Warranty |
1year (besides high consumable parts) |
|
Slitting blades |
4pcs (standard) max. 15 pcs (optional) |
Data onneciviy: |
USB 2.0/Ehemel 10/100Base-T/GPlO |
|
Cutting tracking |
singe mark |
Optional |
Cutting head Siting unit Film back liner removal Sheet paper cutter |
|
Die cutting technology |
With tungsten steel rotary blades |
||
|
Curling precision |
0.1mm (duplicate) |
 |
 |
 |
| Unwinding Stand | Web Guide | Laminating |
 |
 |
 |

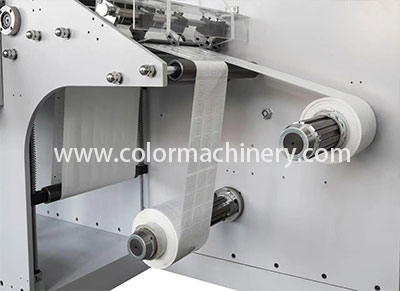

| Tracking Guide | Die Cutting Unit | Waste Rewinder |
 |
 |
 |

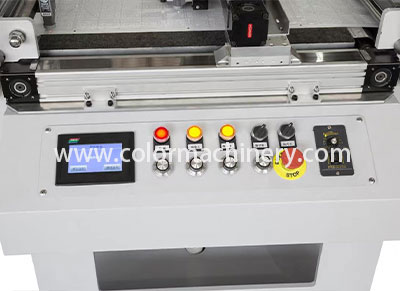

| Slitting Unit | Rewinding Unit | Operating Panel |
 |
 |
|

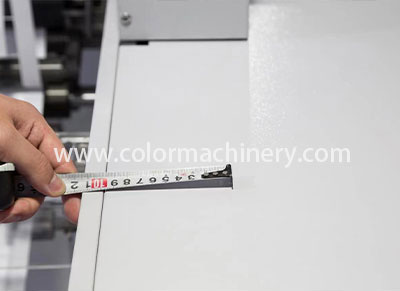

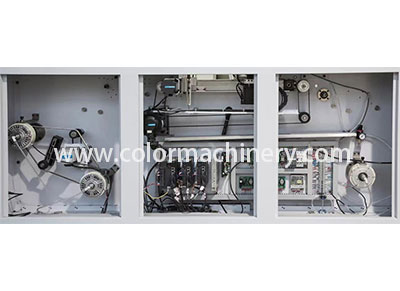

| Electrical Cabinet | Wall plate Thickness |
