Full Rotary Intermittent Die Cutting Machine
The Full Rotary Intermittent Die Cutting Machine adopts an advanced servo control system and is suitable for printed labels. It does not require changing the magnetic cylinder for different label sizes.
The Full Rotary Intermittent Die Cutting Machine adopts an advanced servo control system and is suitable for printed labels. It does not require changing the magnetic cylinder for different label sizes.
.png)
Full Rotary Intermittent Die Cutting Machine is the latest research and development product, equipped with die-cutting, intermittent die-cutting and slitting units, it adopt advanced servo control system, user-friendly operation panel, greatly improve product quality and production efficiency; with the latest full-rotary and intermittent interchangeable technology; suitable for digital printing label small and medium quantity order after die-cutting.
|
Item |
DC370-NOVA |
|
Max. Rotary Speed |
120m/min |
|
Max. Intermittent Speed |
300times/min |
|
Max. Web Width |
370mm |
|
Die Cutting Repeat |
50-444.5mm |
|
Die Cutting Precision |
± 0.15mm |
|
Max. Unwinding Dia. |
800mm |
|
Max. Up Rewind Dia. |
450mm |
|
Max.Down Rewind Dia. |
800mm |
|
Rewind Inner Core Size |
1-6inch(standard in 3 inch) |
|
Thickness Of Material |
20-300um |
|
Air source |
0.8Mpa |
Waste Matrix Unit

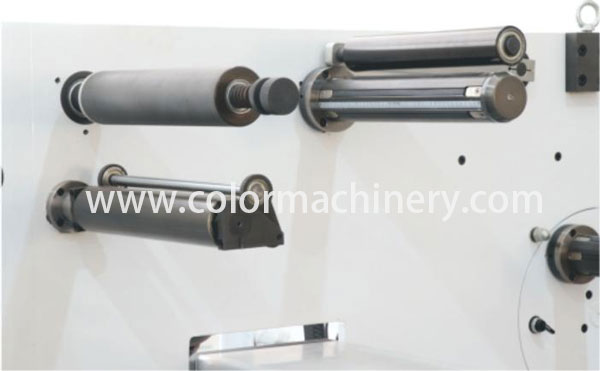

Snow ball waste matrix unit, reduce waste rewinder distance, make waste rewinding more stable, independent motor drive, rewind shaft speed varies with machine speed, reduce tension fluctuation, prolong magnetic powder service life.
Die Cutting Unit

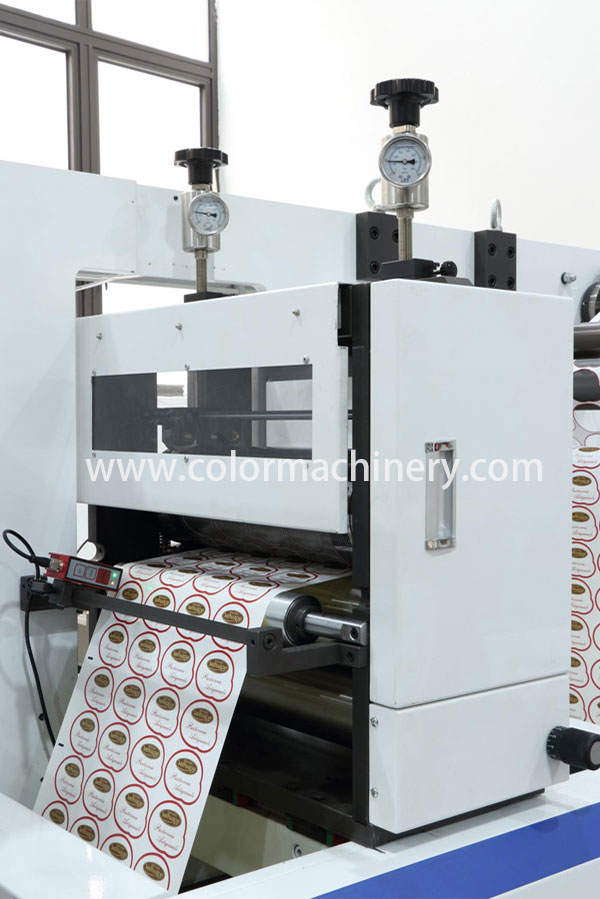

Adopt servo motor diver, double servo motor traction, independent tracking system, intermittent and rotary interchange working.

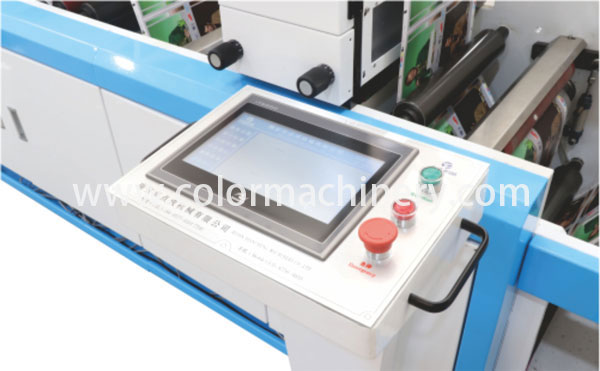

Touch Screen
Movable platform, friendly touched control screen.

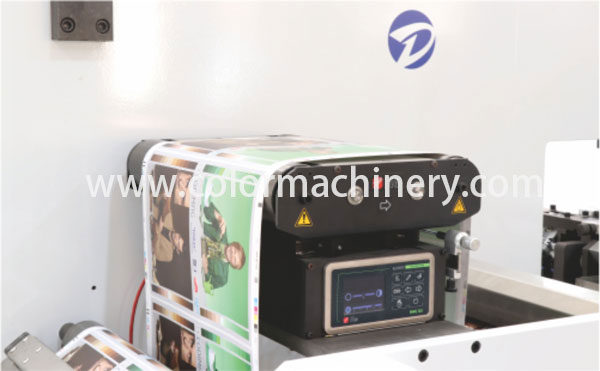

Web Guide
International brand web guide system, High precision.

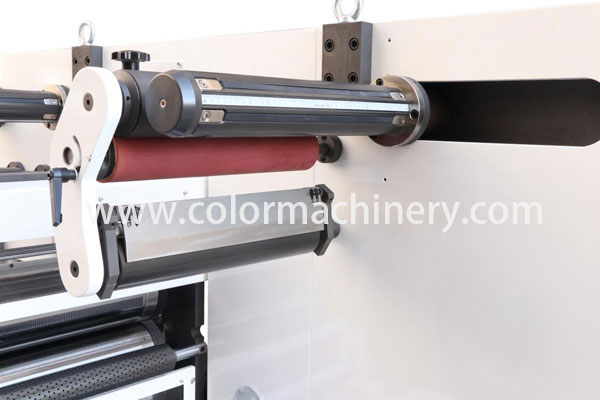

Snowball matrix rewind, different web path for different kind product, more efficient

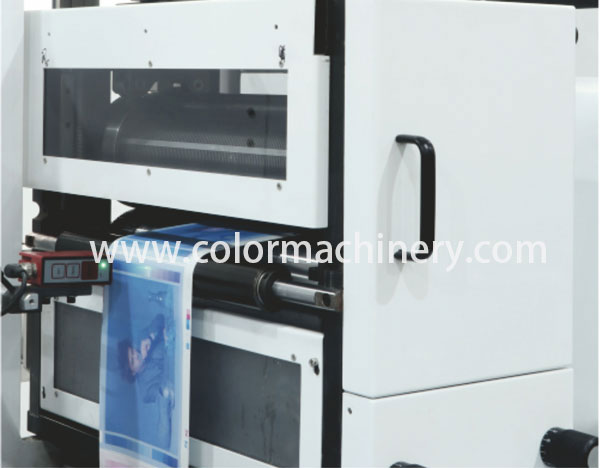

Adopt servo motor driven, double servo motor traction, independent tracking system, full rotary and semi rotary interchange working, the pressure gauge and gapmaster can be installed as optional

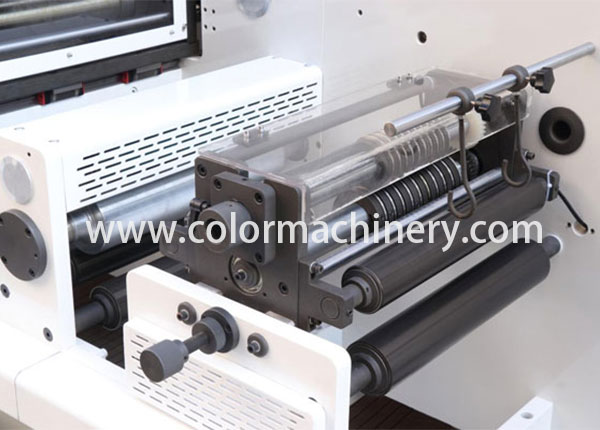

Slitting unit, can be installed with rotary knife and razor knife, min slititng width 20mm.
