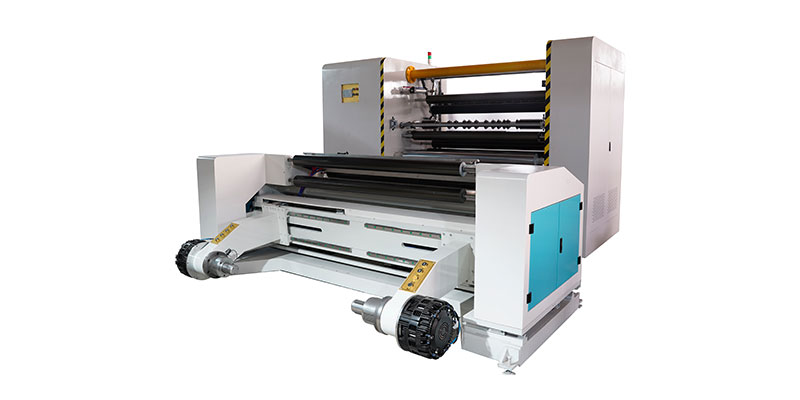

Ground Paper Roll Slitting Machine
QFJ-LM Ground Paper Roll Slitting Machine with a maximum winding diameter of up to 1500mm. It adopts two different methods of winding: without shaft and with shaft.
QFJ-LM Ground Paper Roll Slitting Machine with a maximum winding diameter of up to 1500mm. It adopts two different methods of winding: without shaft and with shaft.
.png)
This Ground Paper Roll Slitting Machine is particularly suitable for materials with large winding diameters, with a maximum winding diameter of up to 1500mm. It adopts two different methods of winding: without shaft and with shaft. Suitable for PVC/ BOPP/ CPP/ PET/ composite film/ aluminum foil/paper and other rolls.
Tight winding material
Slitting speed 400/min
Independent shaftless feeding
Min.Slitting width 100mm
4sets servo motor controll
Unwinding diameter 1500mm（Customizable）
Rewinding diameter 1200mm（Customizable）
|
Machine model |
1600 |
2000 |
3000 |
|
Slitting speed |
400/min |
400/min |
400/min |
|
Unwinding width |
1600mm |
2000mm |
3000mm |
|
Min slitting width |
100MM |
100MM |
100MM |
|
Unwinding diameter |
Φ1500mm |
Φ1500mm |
Φ1500mm |
|
Rewinding diameter |
Φ1200mm |
Φ1200mm |
Φ1200mm |
|
Main servo motor power |
2*11KW |
2*16KW |
2*22KW |
|
Revinding servo motor power |
2.2KW |
2.2KW |
2.2KW |
|
Unwinding servo motor power |
7.5KW |
2*7.5KW |
2*11KW |
