Thermal Paper Slitting Rewinding Machine
The Thermal Paper Slitting and Rewinding Machine is used for slitting and rewinding various types of thermal paper, including fax paper, ATM paper, and ECG paper. The maximum running speed is 150 m/min
The Thermal Paper Slitting and Rewinding Machine is used for slitting and rewinding various types of thermal paper, including fax paper, ATM paper, and ECG paper. The maximum running speed is 150 m/min
.png)
The thermal paper slitting rewinding machine is used for slitting and rewinding all kinds of thermal paper, including fax paper, cash register paper, ATM paper, ECG paper, medical record paper, POS paper, self-adhesive trade marks, non-woven cloth, films etc,but is also widely used in the processing of new thermal materials such as non-woven fabrics and films, demonstrating its strong adaptability and flexibility.
|
Model Type |
FQ-W900S |
|
Max. Parent Web Width |
900mm |
|
Max. Parent Web Diameter |
1000mm |
|
Max. Rewinding Diameter |
160mm 60mm for coreless roll |
|
Min. Slit Width |
25mm |
|
Max. Machine Speed |
150m/min |
|
Unwinding Shaft |
3” Air Expanding Shaft |
|
Rewinding Shaft |
0.5”, 1” are available(or as request) |
|
Voltage |
three-phase four-wire, 380V,50HZ |
|
Power |
2.9 kw |
|
Weight |
1200kg |
|
Overall Dimensions (L*W*H) |
2100mm* 1900mm *1500mm |
The thermal paper slitting rewinding machine adopts Siemens PLC control system and touch screen, all the parameters are displayed on the monitor, and it will automatic work.
The main motor adopts Siemens inverter motor, and frequency inverter control.
The thermal paper slitting rewinding machine adopts automatic Chain link lift-up loading system. Using the separate cylinder control locking the shaft.
All transmission rollers have been dynamic/static balance treated.
The thermal paper slitting rewinding machine adopts red line marking system, printing red line at the end of paper rolls.

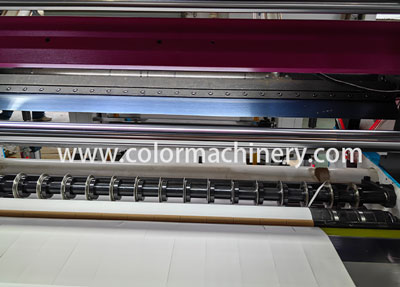

The thermal paper slitting rewinding machine adopts round blades to slit, it equipped with automatic wasting materials edge trimming system.
It adopts auto tucker, adjust the paper material loose or tight easily.
It adopts automatic tension control controller to keep constant tension.
It adopts auto meter counter, when it reach the setup length, the machine stop and alarm automatically.
It can adopts automatic cutter and gluer.
It equipped with emergency switch.
|
Application Material |
|
|
fax paper, cash register paper, ATM paper, ECG paper, medical record paper, POS paper, self-adhesive trade marks, non-woven cloth, films etc. |
|
|
Unwinding Section |
|
|

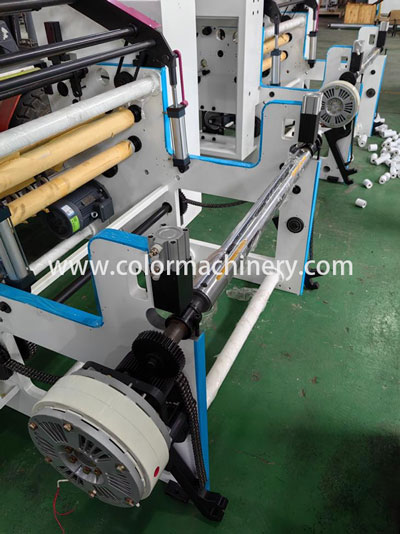

3''(76mm)air expanding shaft Chain link automatic lift-up loading system Cylinder locking the unwinding shaft Magnetic Clutch |
 |
|
Slitting Section |
|
|

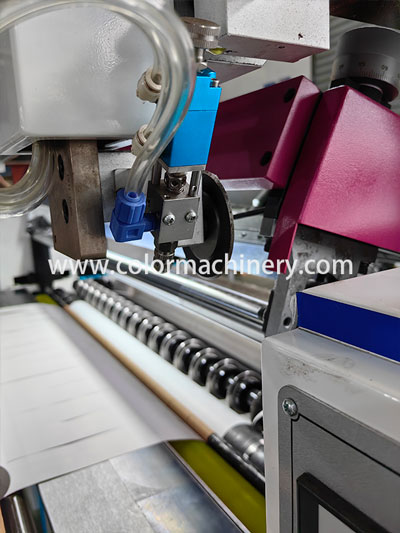

Disc Cutter Assembly adopt the cam self-locking Cutter with adjustable and moveable blade base. Meter counter |
 |
|
Rewinding Section |
|
|
0.5", 1", 1.5" 2" are available Pressure roller Auto Tucker |
 |
